Features
Enhanced Privacy (upgradable at additional cost)
Built-in scrambling for increased security
Transmit Interrupt (upgradable at additional cost)
Enables a user to interrupt another radio conversation to deliver critical communication exactly when and where it’s needed.
Industry-Leading Audio
Loud front-facing speaker and Intelligent Audio feature that automatically adjusts the radio volume according the environment’s noise level
Analog and Digital Interoperability
Operates in both analog and digital modes. Features such as the dynamic mixed mode repeater streamlines automatic switching between analog and digital calls – meaning you only need one repeater to operate both modes.
Rugged Design
Tightly sealed against wind and dust with a water protection rating of IP55
Specification Sheet

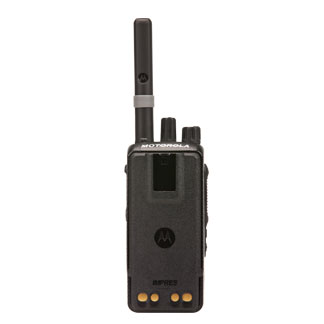

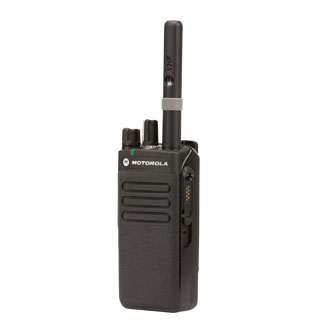

MOTOTRBO XiR P6600 Series Digital Two-Way Portable Radios
MOTOTRBO XiR P6600 Series Digital Two-Way Portable Radios
MOTOTRBO Digital Telephone Interconnect Fact Sheet
MOTOTRBO™ Digital Telephone Interconnect
Performance Characteristics
-
Power output
1W/4W - UHF, 1W/5W - VHF
-
Battery life (based on a 05 05 90 duty cycle)
11.5 hours in digital mode, 8 hours in analog mode
-
Frequency band
VHF, UHF Wideband
-
4 5 Watt
Yes
-
Repeater capable
Yes
-
Standard battery chemistry type
Lithium Ion
-
1 Watt
Yes
Physical Characteristics
-
Emergency button
Programmable
-
Keypad
None
-
Display
No display
-
Weight (with standard battery)
9.3 oz (265 g)
-
Dimensions H x W x D (with standard battery)
4.80 x 2.20 x 1.43 in. (122 x 56 x 36.4 mm)
Radio Features
-
Transmit interrupt
Yes
-
Digital private line
Yes
-
Private line
Yes
-
Monitor Permanent (Sticky) Monitor
Yes
-
Lone worker
Yes
-
Voice announcement
Yes
-
Signalling
MDC (Encode/Decode), Quik-Call II (Encode/Decode), DTMF Encode
-
Intelligent audio
Yes
-
Programmable buttons
Yes
-
Voice operated transmit (VOX)
Yes
-
Time out timer
Yes
-
Talkaround
Yes
-
Scan types
Normal, Priority, Dual priority, Nuisance channel delete, Talk group, All group, System, Home revert
-
Phone book
Yes
-
Group call
Yes
-
One to one calling
Yes
-
Missed call alerts
Yes
-
CPS (Customer Programming Software)
Yes
-
Channel spacing
12.5, 25
-
Number of channels
16
-
Channel scan
Yes
-
Caller ID
Yes
-
Call tones
Yes
-
Call forward
Yes
-
Busy channel lockout
Yes
Technology
-
System type
TDMA, Capacity Plus
-
Digital technology
Yes
User Environment
-
IP Standards
IP55
-
Mil spec
810 C, 810 D, 810 E, 810 F, 810 G
-
Noise reduction software
Yes
Warranty
-
Standard package
NiMH 1300mAh battery, Single-Unit Charger, Standard UHF or VHF antenna, Accessory Dust Cover, 2" Belt Clip, User Guide, 2 year warranty.
-
Standard warranty
2 years
