Specification Sheet

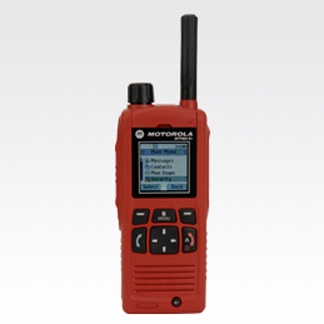

MTP850Ex ATEX TETRA Terminal
Part of Motorola Solutions' market leading range of ATE X TETRA terminals, the MTP850 Ex provides high quality communication with comprehensive user safety and class leading ATE X specifications allowing use when in environments containing potentially explosive gas and dust.
TETRA Ear Microphone Spec Sheet
Motorola Ear Microphone System: Compact, Durable Accessory that Meets Demanding Mission Critical Needs
Physical Characteristics
-
Dimensions H x W x D (with standard battery)
135 x 55 x 38 mm
-
Weight
400 g (including battery, antenna)
Performance Characteristics
-
Battery capacity
725 mAh, 7.2V
-
Battery life (based on a 05 05 90 duty cycle)
12 hrs, typ
-
Frequency bands
380 – 430 MHz
-
Channel spacing
25
-
Power
1W
-
RF power control
3 steps of 5 dB
-
OTAR
Yes
Radio Features
-
Switching bandwidth
50 MHz
-
RF power level accuracy
+/- db 2
-
Receiver class
A & B
-
Receiver static sensitivity
-112 minimum, -115 typical
-
Receiver dynamic sensitivity
-103 minimum, -107 typical
-
Scan types
Talkgroup
User Environment
-
ATEX gas specifications
II 2G Ex ib IIC T4, IEC Ex rating, Ex ib IIC T4 (Approved for Zone 1 & 2, Equipment Group II, Gas Group C, Temperature Class T4, -20oC to +50oC)
-
ATEX dust specifications
ATEX dust specifications
-
Operating temperature
"-20°C to +50°C (Hazardous environments)
-20°C to +60°C (Non-hazardous environments)" -
Storage temperature
-40°C to +85°C
-
Humidity
ETS 300 019-1-5 Class 5.1 and 5.2
-
Dust and water
IP65 per IEC 60529
-
Shock, drop and vibration
ETS 300 019-1-5 Class 5M2
-
IP Standards
IP65
Voice Services
-
Talkgroups
2048 (TMO) & 1024 (DMO)
-
Phone book
1000 entries
-
Scan lists
40 lists, 20 talkgroups / lists
-
Ambience listening
Yes
-
Transmit inhibit
Yes
TMO Services
-
Telephony
Full duplex
-
DGNA
Up to 2047 groups
DMO Services
-
Group call
Late entry
-
Private call
Half / full duplex
-
Compatiblity with
Gateway and repeater
Emergency Voice Services
-
Smart emergency
DMO / TMO / DMO to TMO
-
Hot mic
Configurable timers
-
Location
Send on emergency
-
Emergency target address
Individual or group
-
Alarm
Emergency status
Data Services
-
Status messaging
100 alias messages
-
Short data service (SDS)
20 message inbox, individual or group addresses, send/receive during calls
-
Packet data (PD)
7.2kbps - 28.8 kbps gross (single or mutli-slot)
-
Browser
Integrated Openwave browser
-
PEI
AT commands
Security Features
-
Air interface encryption algorithms
TEA1, TEA2, TEA3
-
Air interface encryption security classes
Class1 (clear), Class2 (SCK), Class3 (DCK, CCK & GCK)
-
Key provisioning
Secure provisioning tool (key variable loader KVL)
Over the Air Re-keying (OTAR) for SCK and Class 3 (CCK & GCK)
-
Network access
Temporary enable disable (Stun), Permanent enable disable (Kill)
-
Authentication
Infrastructure initiated and made mutual by terminal
GPS Specifications
-
Simultaneous satellites
12
-
Mode of operation
Autonomous or assisted (A-GPS)
-
GPS antenna
Integrated in TETRA antenna
-
GPS sensitivity
-152 dBm / -182 dBw
-
GPS accuracy
5 meter (50% probable)
-
Location protocols
ETSI LIP, Motorola LRRP
