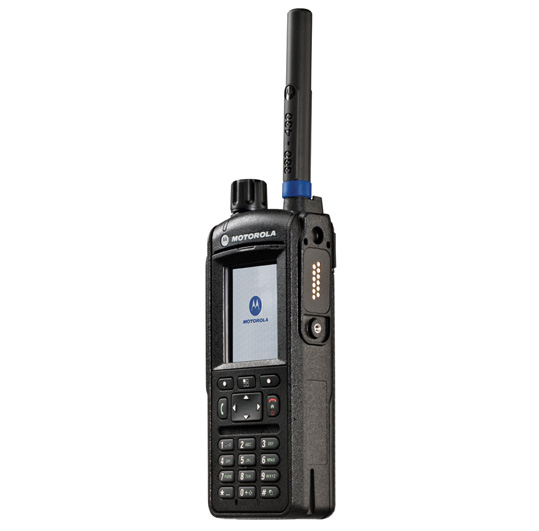

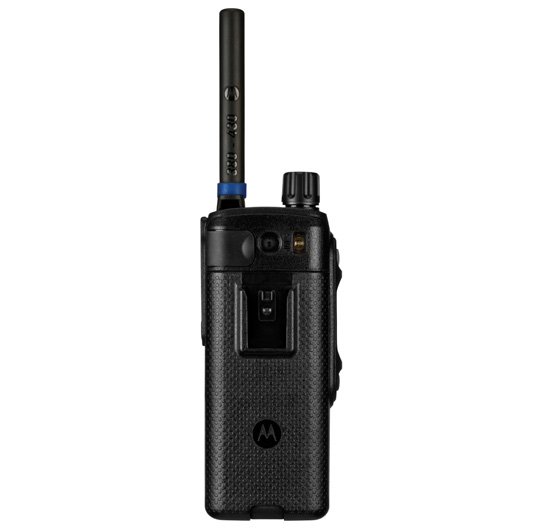

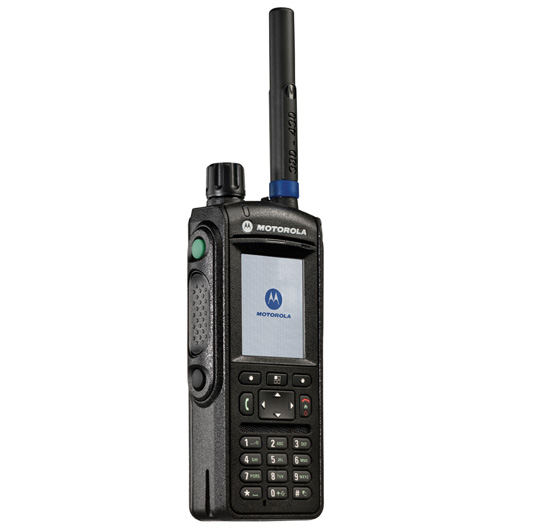

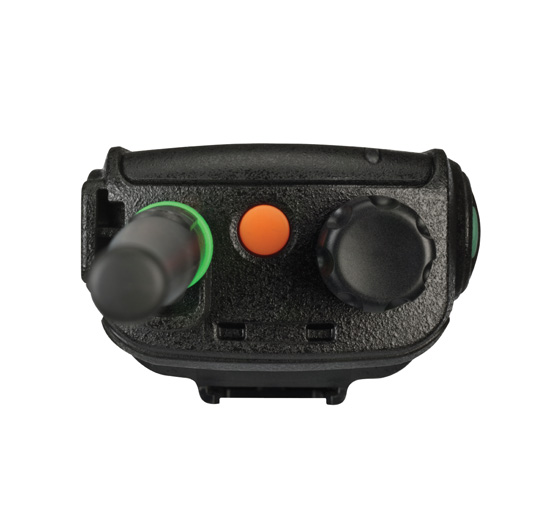

MTP6750 TETRA Radio

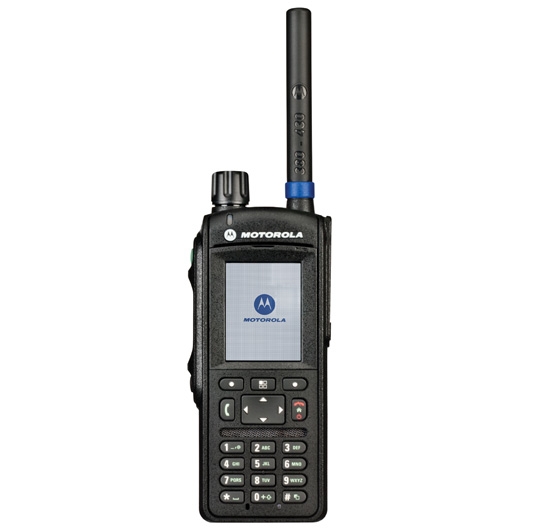

1 mtp6750 faceon
  • 1 mtp6750 faceon

This product is no longer manufactured or available. Please check out our latest TETRA devices.

Contact sales

Share this on

Connect with us on

Back
MTP6750 TETRA Radio
Product Info
Jump to ...
Back
MTP6750 TETRA Radio

Specification Sheet

Physical Characteristics

  • /content/cq:tags/msi/specifications/product-categories/two-way-radios/portable-radios/government-and-public-safety-portable-radios/government-and-public-safety-portable-radios/physical-characteristics Dimensions H x W x D (with standard battery)

    132 x 59 x 34 mm (with standard battery)

Performance Characteristics

  • /content/cq:tags/msi/specifications/product-categories/two-way-radios/portable-radios/government-and-public-safety-portable-radios/government-and-public-safety-portable-radios/performance-characteristics Frequency bands

    350-470 MHz

  • /content/cq:tags/msi/specifications/product-categories/two-way-radios/portable-radios/government-and-public-safety-portable-radios/government-and-public-safety-portable-radios/performance-characteristics Power output

    Class 3L (1.8W) & Class 4 (1W)

  • /content/cq:tags/msi/specifications/product-categories/two-way-radios/portable-radios/government-and-public-safety-portable-radios/government-and-public-safety-portable-radios/performance-characteristics OTAR

    Yes

Radio Features

  • /content/cq:tags/msi/specifications/product-categories/two-way-radios/portable-radios/government-and-public-safety-portable-radios/government-and-public-safety-portable-radios/radio-features Receiver static sensitivity

    -114 dBm minimum, -116 dBm typical

  • /content/cq:tags/msi/specifications/product-categories/two-way-radios/portable-radios/government-and-public-safety-portable-radios/government-and-public-safety-portable-radios/radio-features Receiver dynamic sensitivity

    -105 dBm minimum, -107 dBm typical

  • /content/cq:tags/msi/specifications/product-categories/two-way-radios/portable-radios/government-and-public-safety-portable-radios/government-and-public-safety-portable-radios/radio-features Scan types

    Talkgroup

  • /content/cq:tags/msi/specifications/product-categories/two-way-radios/portable-radios/government-and-public-safety-portable-radios/government-and-public-safety-portable-radios/radio-features Receiver class

    A&B

  • /content/cq:tags/msi/specifications/product-categories/two-way-radios/portable-radios/government-and-public-safety-portable-radios/government-and-public-safety-portable-radios/radio-features RF power level accuracy

    +/- 2 dB

User Environment

  • /content/cq:tags/msi/specifications/product-categories/two-way-radios/portable-radios/government-and-public-safety-portable-radios/government-and-public-safety-portable-radios/user-environment IP Standards

    IP67 and IP65 per IEC60529

  • /content/cq:tags/msi/specifications/product-categories/two-way-radios/portable-radios/government-and-public-safety-portable-radios/government-and-public-safety-portable-radios/user-environment Operating temperature

    -30 o C to +60 o
    C

  • /content/cq:tags/msi/specifications/product-categories/two-way-radios/portable-radios/government-and-public-safety-portable-radios/government-and-public-safety-portable-radios/user-environment Storage temperature

    -40°C to +85°C

  • /content/cq:tags/msi/specifications/product-categories/two-way-radios/portable-radios/government-and-public-safety-portable-radios/government-and-public-safety-portable-radios/user-environment Humidity

    ETSI 300 019-1-7 class 7.3E

  • /content/cq:tags/msi/specifications/product-categories/two-way-radios/portable-radios/government-and-public-safety-portable-radios/government-and-public-safety-portable-radios/user-environment Shock, drop and vibration

    ETSI 300-019 1-7 class 5M3

Voice Services

  • /content/cq:tags/msi/specifications/product-categories/two-way-radios/portable-radios/government-and-public-safety-portable-radios/government-and-public-safety-portable-radios/voice-services Talkgroups

    2048 (TMO) & 1024 (DMO)

  • /content/cq:tags/msi/specifications/product-categories/two-way-radios/portable-radios/government-and-public-safety-portable-radios/government-and-public-safety-portable-radios/voice-services Phone book

    1000 entries

  • /content/cq:tags/msi/specifications/product-categories/two-way-radios/portable-radios/government-and-public-safety-portable-radios/government-and-public-safety-portable-radios/voice-services Scan lists

    40 lists, 20 talkgroups / lists

  • /content/cq:tags/msi/specifications/product-categories/two-way-radios/portable-radios/government-and-public-safety-portable-radios/government-and-public-safety-portable-radios/voice-services Ambience listening

    Yes

  • /content/cq:tags/msi/specifications/product-categories/two-way-radios/portable-radios/government-and-public-safety-portable-radios/government-and-public-safety-portable-radios/voice-services Transmit inhibit

    Yes

TMO Services

  • /content/cq:tags/msi/specifications/product-categories/two-way-radios/portable-radios/government-and-public-safety-portable-radios/government-and-public-safety-portable-radios/tmo-services Telephony

    Full duplex

  • /content/cq:tags/msi/specifications/product-categories/two-way-radios/portable-radios/government-and-public-safety-portable-radios/government-and-public-safety-portable-radios/tmo-services DGNA

    Up to 2047 groups

DMO Services

  • /content/cq:tags/msi/specifications/product-categories/two-way-radios/portable-radios/government-and-public-safety-portable-radios/government-and-public-safety-portable-radios/dmo-services Group call

    Late entry

  • /content/cq:tags/msi/specifications/product-categories/two-way-radios/portable-radios/government-and-public-safety-portable-radios/government-and-public-safety-portable-radios/dmo-services Compatiblity with

    Gateway and repeater

Emergency Voice Services

  • /content/cq:tags/msi/specifications/product-categories/two-way-radios/portable-radios/government-and-public-safety-portable-radios/government-and-public-safety-portable-radios/emergency-voice-services Smart emergency

    DMO / TMO / DMO to TMO

  • /content/cq:tags/msi/specifications/product-categories/two-way-radios/portable-radios/government-and-public-safety-portable-radios/government-and-public-safety-portable-radios/emergency-voice-services Hot mic

    Configurable timers

  • /content/cq:tags/msi/specifications/product-categories/two-way-radios/portable-radios/government-and-public-safety-portable-radios/government-and-public-safety-portable-radios/emergency-voice-services Location

    Send on emergency

  • /content/cq:tags/msi/specifications/product-categories/two-way-radios/portable-radios/government-and-public-safety-portable-radios/government-and-public-safety-portable-radios/emergency-voice-services Emergency target address

    Individual or group

  • /content/cq:tags/msi/specifications/product-categories/two-way-radios/portable-radios/government-and-public-safety-portable-radios/government-and-public-safety-portable-radios/emergency-voice-services Alarm

    Emergency status

Data Services

  • /content/cq:tags/msi/specifications/product-categories/two-way-radios/portable-radios/government-and-public-safety-portable-radios/government-and-public-safety-portable-radios/data-services Data storage

    micro SD card (max. 32 GB)

  • /content/cq:tags/msi/specifications/product-categories/two-way-radios/portable-radios/government-and-public-safety-portable-radios/government-and-public-safety-portable-radios/data-services Status messaging

    400 alias messages

  • /content/cq:tags/msi/specifications/product-categories/two-way-radios/portable-radios/government-and-public-safety-portable-radios/government-and-public-safety-portable-radios/data-services Short data service (SDS)

    20 message inbox, individual or group addresses, send/receive during calls

  • /content/cq:tags/msi/specifications/product-categories/two-way-radios/portable-radios/government-and-public-safety-portable-radios/government-and-public-safety-portable-radios/data-services Packet data (PD)

    7.2kbps - 28.8 kbps gross (single or mutli-slot)
    TEDS-ready hardware – TEDS supports up to 80kbps in 50kHz channel

  • /content/cq:tags/msi/specifications/product-categories/two-way-radios/portable-radios/government-and-public-safety-portable-radios/government-and-public-safety-portable-radios/data-services Browser

    Integrated WAP browser

  • /content/cq:tags/msi/specifications/product-categories/two-way-radios/portable-radios/government-and-public-safety-portable-radios/government-and-public-safety-portable-radios/data-services PEI

    AT commands

Security Features

  • /content/cq:tags/msi/specifications/product-categories/two-way-radios/portable-radios/government-and-public-safety-portable-radios/government-and-public-safety-portable-radios/security-features End to End encryption

    Enhanced End to End Encryption with OTAK
    supported through AES128

  • /content/cq:tags/msi/specifications/product-categories/two-way-radios/portable-radios/government-and-public-safety-portable-radios/government-and-public-safety-portable-radios/security-features Air interface encryption algorithms

    TEA1, TEA2, TEA3

  • /content/cq:tags/msi/specifications/product-categories/two-way-radios/portable-radios/government-and-public-safety-portable-radios/government-and-public-safety-portable-radios/security-features Air interface encryption security classes

    Class1 (clear), Class2 (SCK), Class3 (DCK, CCK & GCK)

  • /content/cq:tags/msi/specifications/product-categories/two-way-radios/portable-radios/government-and-public-safety-portable-radios/government-and-public-safety-portable-radios/security-features Key provisioning

    "Secure provisioning tool (key variable loader KVL)
    Over the Air Re-keying (OTAR) for SCK and Class 3 (CCK & GCK)"

  • /content/cq:tags/msi/specifications/product-categories/two-way-radios/portable-radios/government-and-public-safety-portable-radios/government-and-public-safety-portable-radios/security-features Network access

    Temporary enable disable (Stun), Permanent enable disable (Kill)

  • /content/cq:tags/msi/specifications/product-categories/two-way-radios/portable-radios/government-and-public-safety-portable-radios/government-and-public-safety-portable-radios/security-features Authentication

    Infrastructure initiated and made mutual by terminal

GPS Specifications

  • /content/cq:tags/msi/specifications/product-categories/two-way-radios/portable-radios/government-and-public-safety-portable-radios/government-and-public-safety-portable-radios/gps-specifications GPS antenna

    Integrated in TETRA antenna

  • /content/cq:tags/msi/specifications/product-categories/two-way-radios/portable-radios/government-and-public-safety-portable-radios/government-and-public-safety-portable-radios/gps-specifications Mode of operation

    Autonomous or assisted (A-GPS)

  • /content/cq:tags/msi/specifications/product-categories/two-way-radios/portable-radios/government-and-public-safety-portable-radios/government-and-public-safety-portable-radios/gps-specifications Location protocols

    ETSI LIP, Motorola LRRP

Integrated Imaging Features

  • /content/cq:tags/msi/specifications/product-categories/two-way-radios/portable-radios/government-and-public-safety-portable-radios/government-and-public-safety-portable-radios/integrated-imaging-features Image management

    Works with iTM PICS for auto-upload and download of images

  • /content/cq:tags/msi/specifications/product-categories/two-way-radios/portable-radios/government-and-public-safety-portable-radios/government-and-public-safety-portable-radios/integrated-imaging-features Meta-data

    Time, Date, Radio ID, Cell ID, Talkgroup ID, GPS

  • /content/cq:tags/msi/specifications/product-categories/two-way-radios/portable-radios/government-and-public-safety-portable-radios/government-and-public-safety-portable-radios/integrated-imaging-features Image storage

    Up to 32GB micro SD

  • /content/cq:tags/msi/specifications/product-categories/two-way-radios/portable-radios/government-and-public-safety-portable-radios/government-and-public-safety-portable-radios/integrated-imaging-features Image authentication

    Digital fingerprint by Motorola

  • /content/cq:tags/msi/specifications/product-categories/two-way-radios/portable-radios/government-and-public-safety-portable-radios/government-and-public-safety-portable-radios/integrated-imaging-features Flash

    Built-in LED flash

  • /content/cq:tags/msi/specifications/product-categories/two-way-radios/portable-radios/government-and-public-safety-portable-radios/government-and-public-safety-portable-radios/integrated-imaging-features Resolution

    5MP with Auto Focus
